Flat Tray with 280-300mm Dropside Deck & Side Steps

• Size – 4570mm Long x 2440mm Width Approx.

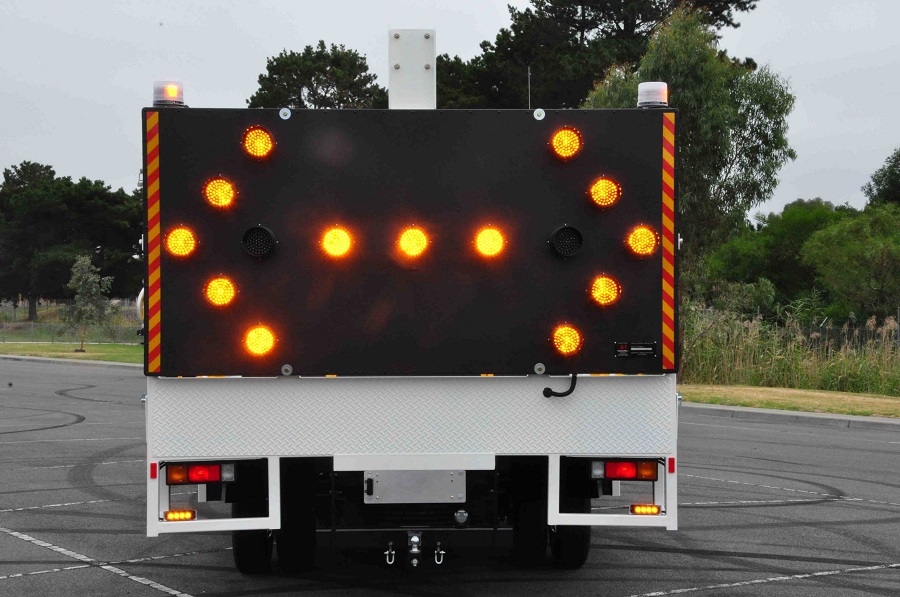

• RHS steel headboard to approx. 1550mm above floor with full checker plate protection panel on rear – painted white or painted black to contrast/highlight the arrow sign or VMS.
• 3mm steel checker plate floor with tie rails – painted white

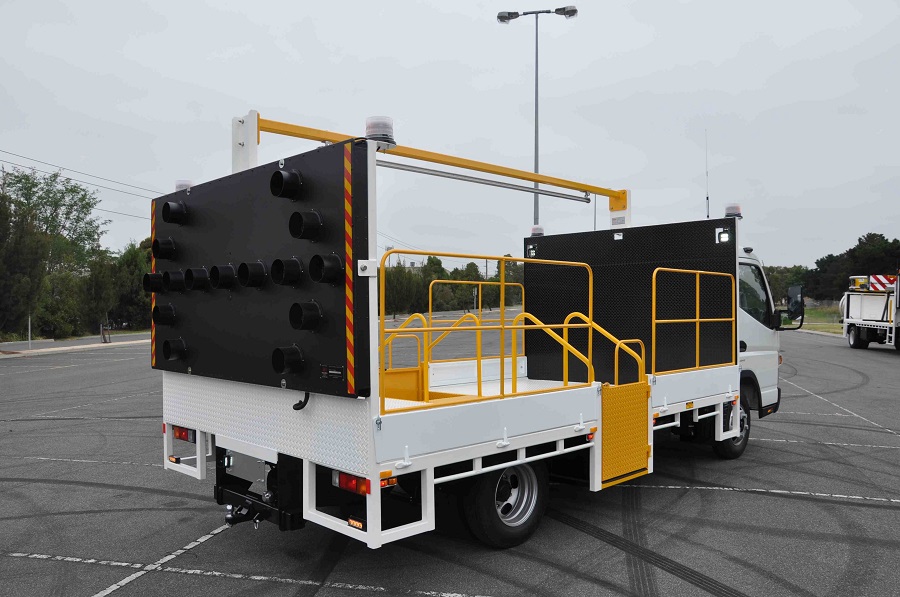

• Work platform approx. 750mm wide x 450mm deep on each side of body with gridmesh base and solid checker plate safety gate - painted yellow.
• Step Light (LHS & RHS)
• Approx 300mm hinged drop side panel on each side of work platform.
• Removable pipe safety rail on each drop side and on rear panel if no arrow board fitted - painted yellow
• LED side marker lights each side of tray
• LED indicator each side at rear
• Two (2) fully sealed LED Work Lamp Flood Beam mounted in headboard.
• Mudflaps, reflectors and marker rear plates to suit registration requirements
• Horizontal Rail Fall Arrest System
• Horizontal Rail Fall Arrest System with Anchor Points
