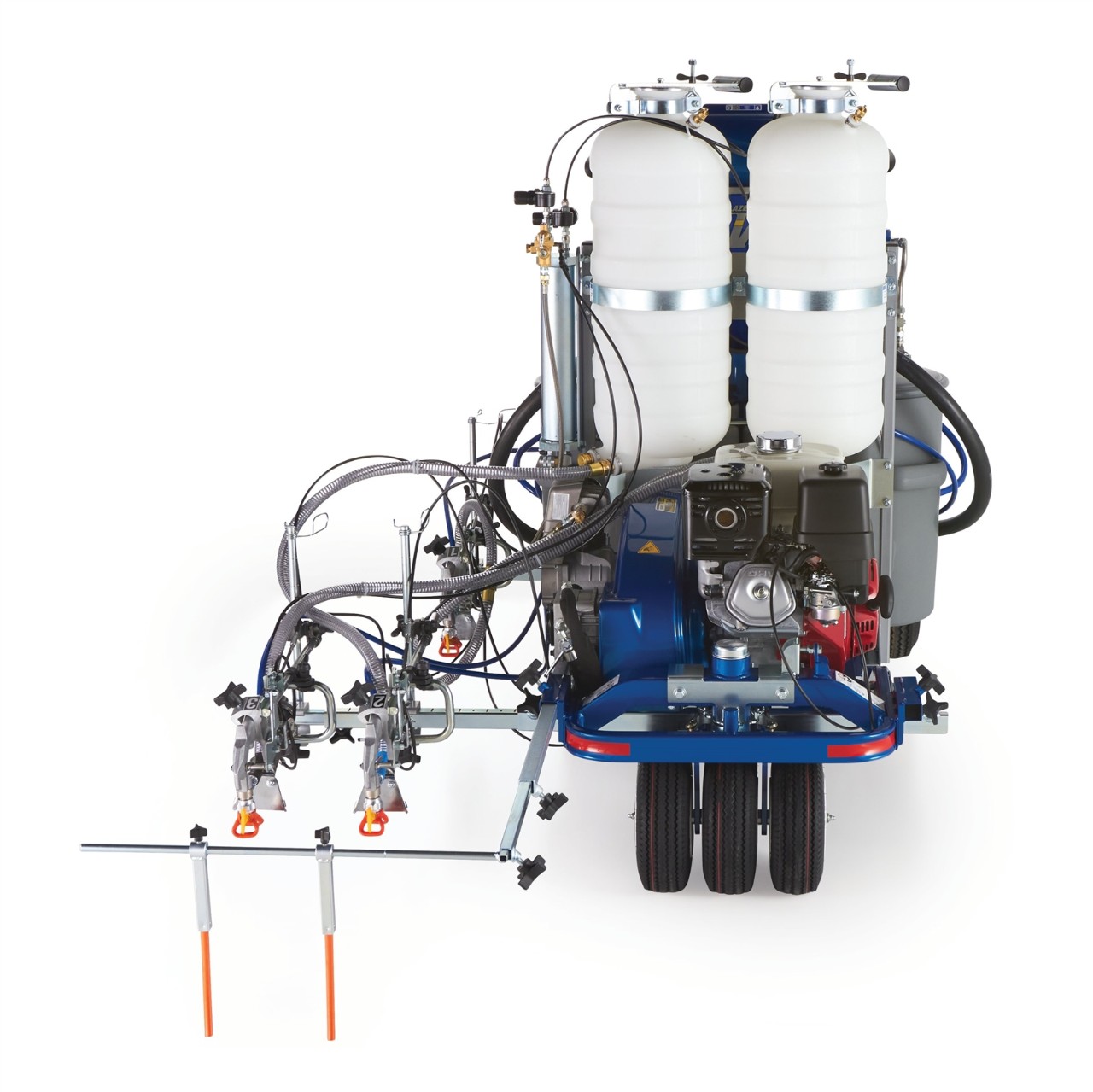

LineLazer V 250DC

Dual Colour HP Refective 3 Gun Striper P/N 17H474
  • The LineLazer V 250DC HP Reflective Series provides high-production dual colour striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-colour stripes with reflective beads.

Overview

The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Pressurised EZ Bead System
    • Superior Bead Application Performance
    • Ensures proper bead flow and paint penetration
  • Dual High-Efficiency Hydraulic Motors
    • Uninterrupted Performance
    • No-stall design
  • Dual Endurance Chromex Pumps
    • Precise Material Flow
    • Consistency with a wide range of striping materials
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue – push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred – excellent power and proven reliability
    • Oil alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System Additional Features
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
    • Front or Rear Gun Mount
    • Self-Centring Front Wheel
    • Easy Handlebar Adjustment
    • High-Capacity Cooling System
    • Easy Out Pump Filter

Specifications -

  • Pressurised Bead System with two (2) tanks installed (Up to 63kg of beads)
  • Three Spray Guns, 6.0m x 3/8” Hose, Tip & Guard
  • 3,300 psi
  • Max Tip Size 1 Gun to 0.055”
  • Max Tip Size 2 Guns to 0.039”
  • Max Tip Size 3 Guns to 0.031”
  • 9.5 litre/min
  • GX390 13 HP Honda Electric Start Motor
  • 56 Litre Paint Tanks (2)
