Falcon 75 ACLM
-
The FALCON 75 ACLM is a premium solution for fully automated traffic cone handling, featuring some unique characteristics
- EASY: Easy to operate through touch screen control panel.
- RESILIANT: Machine design suited for all-weather use (except snow).
- RELIABLE: Developed and tested since 2014 and with experience of 150’000+ cones deployed and collected over hundreds of kilometers of lane closures.
- FAST: FALCON 75 out-performs most competitor systems based on speed.
- SAFE: Minimal exposure of machine structure to live traffic. Zero exposure of moving parts to live traffic.
- FLEXIBLE: Various modes allow for use in different traffic management settings
- MODULAR: Available in three sizes (S/M/L) to fit your requirements.
- Swiss Quality: Designed, developed, and manufactured in Switzerland.
FALCON 75 is 3rd generation cone laying machine. With close to 10 years of experience with automated cone laying systems, the bar has been the bar for performance and reliability.
Overview
The machine is designed for use with 750 mm, 5kg cones, Type Falcon 75. The cone can be delivered with different types of reflective sleeves, depending on local requirements.

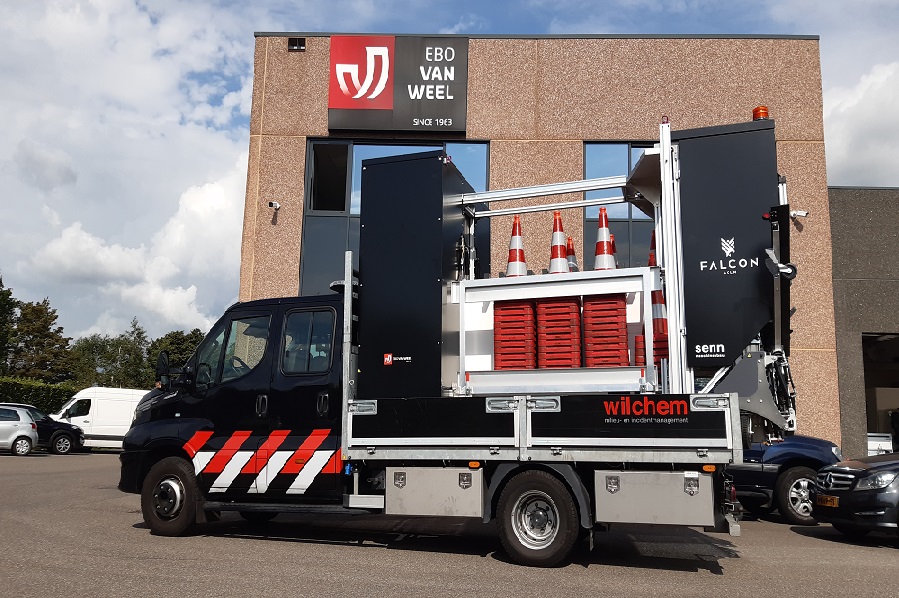

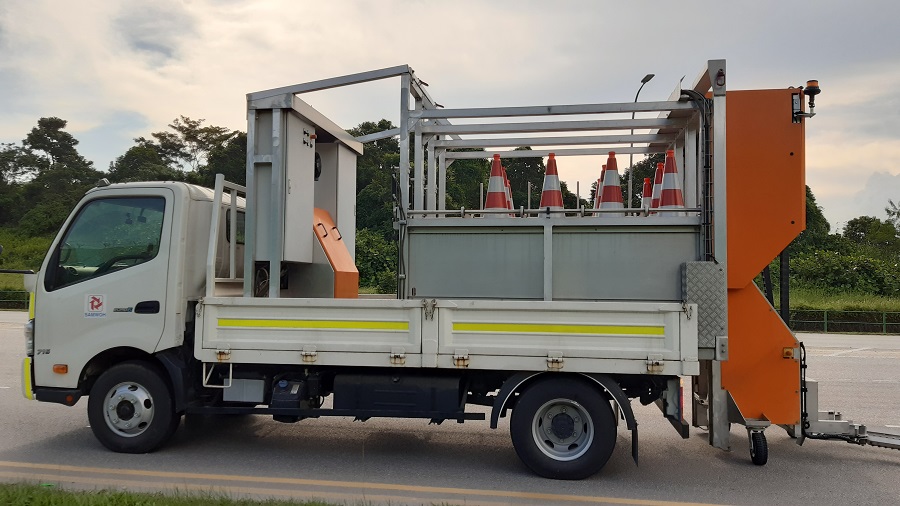

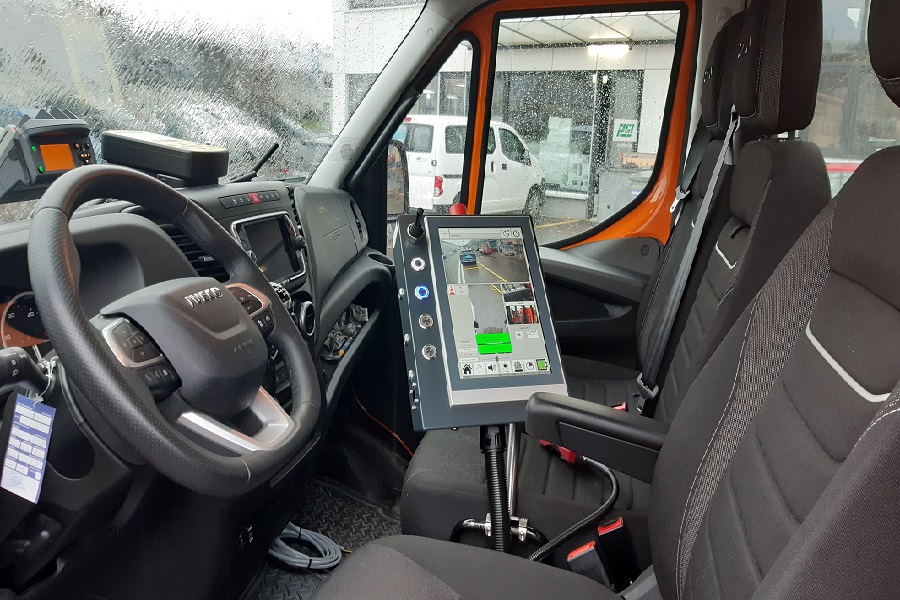

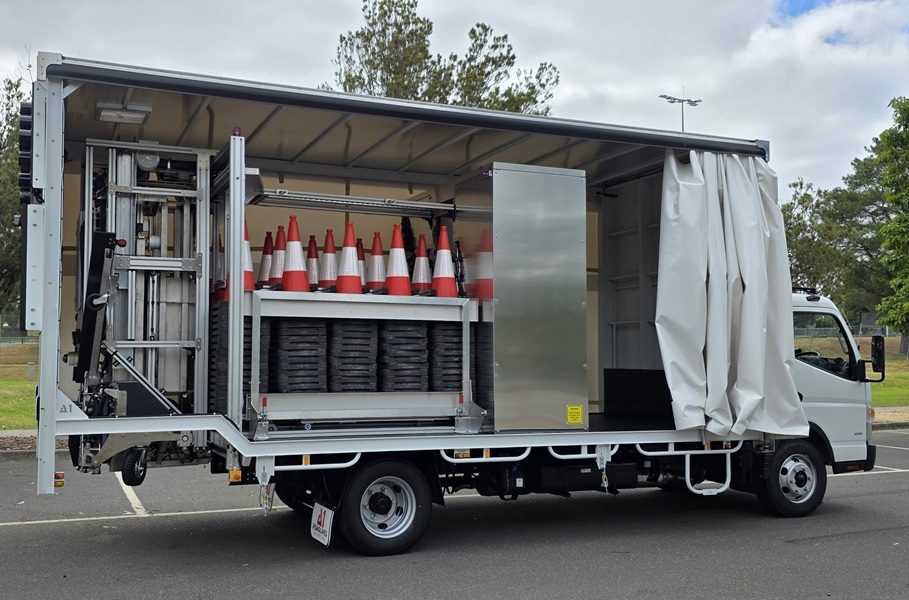

It is designed to be mounted on the back of a truck bed or inside a curtain side body. The distance between cones can be freely set by the operator within a range of 3-100m. There are automatic taper left to right and right to left functions. User friendly touch screen for remote control and camera system display, monitored by 4 cameras.

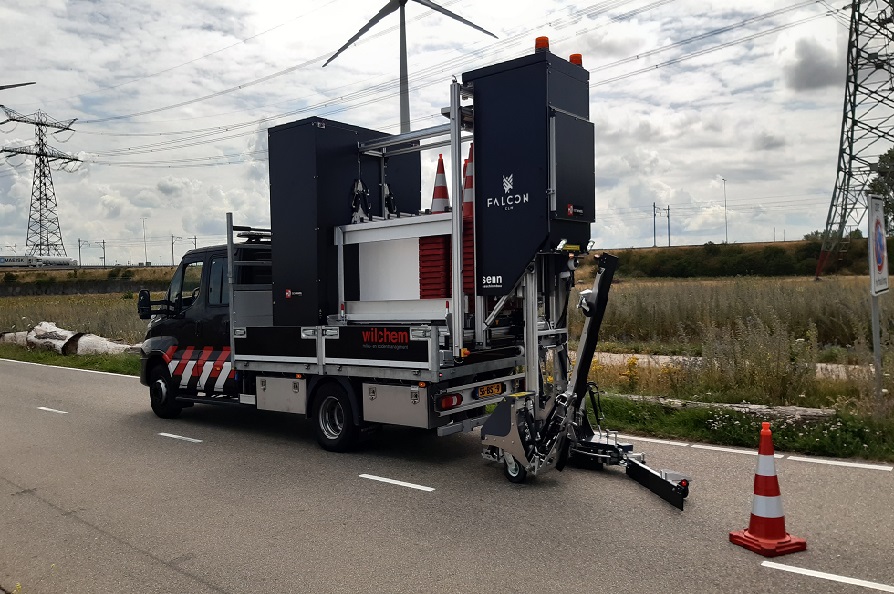

Cones can be placed and picked up all the way across the back of the vehicle including to the outside of the vehicle L/R on each side. Preset modes for work in medium and narrow lanes.

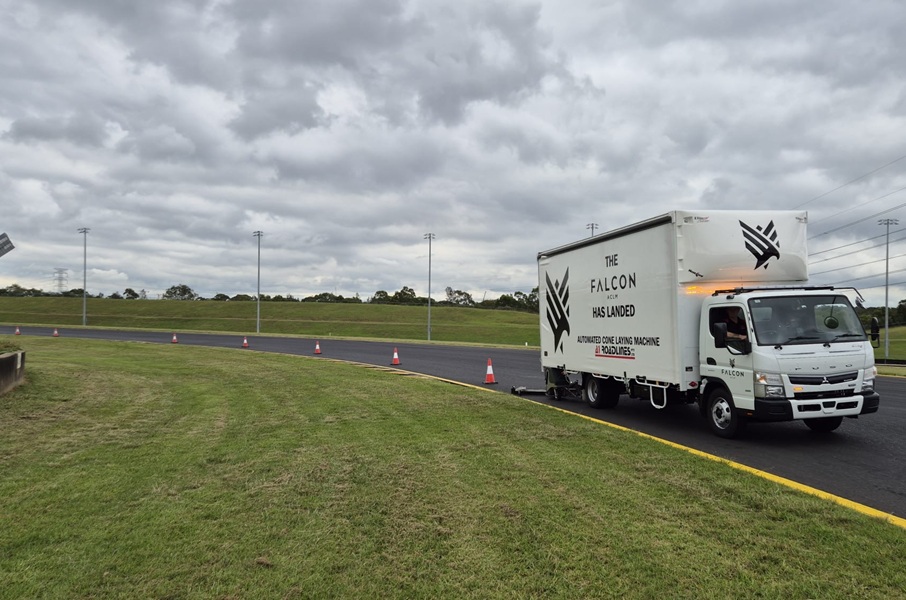

Continuous deployment of cones in one lane at a set distance while driving forward. Continuous collection of cones in lone lane while driving backwards.
Specifications
| Cone Storage | Weight (without cones) | Weight (with cones) | Machine Length |
|---|---|---|---|
| 225 cones | 2,200 kg | 3,400 kg | 4225 mm |
